Introduction

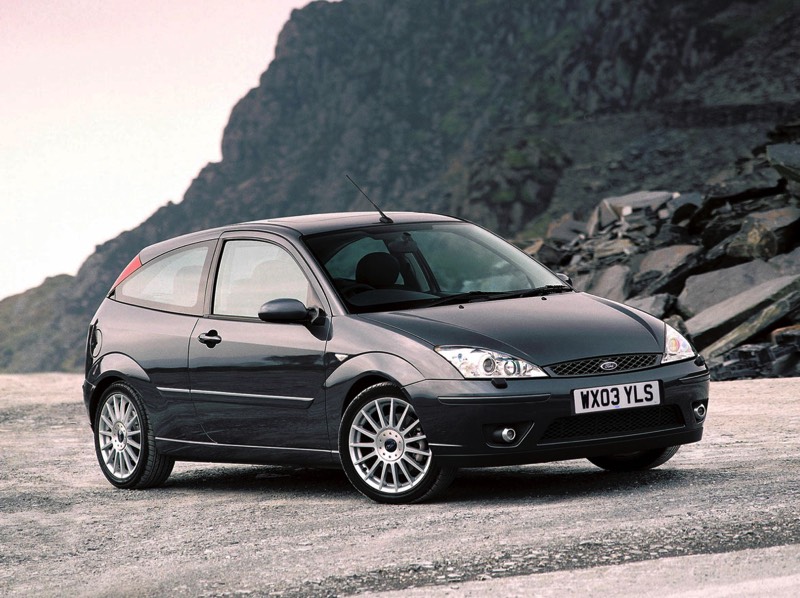

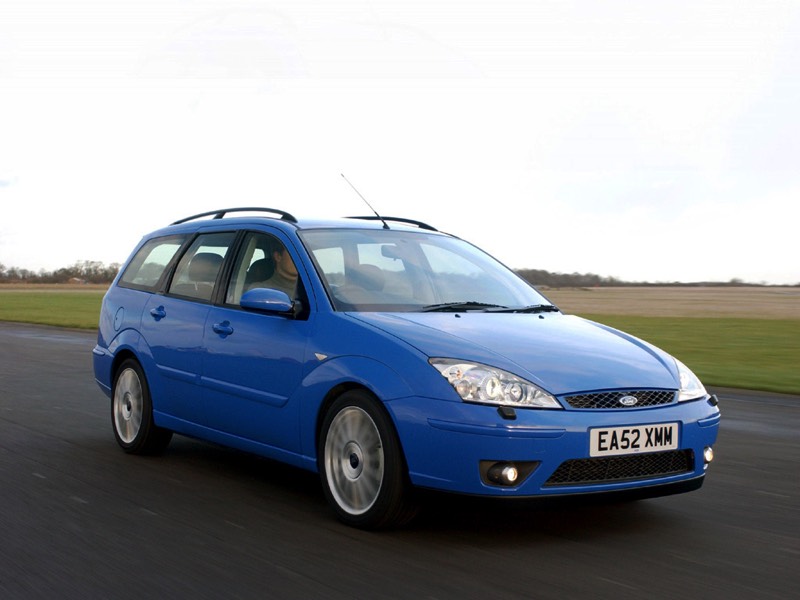

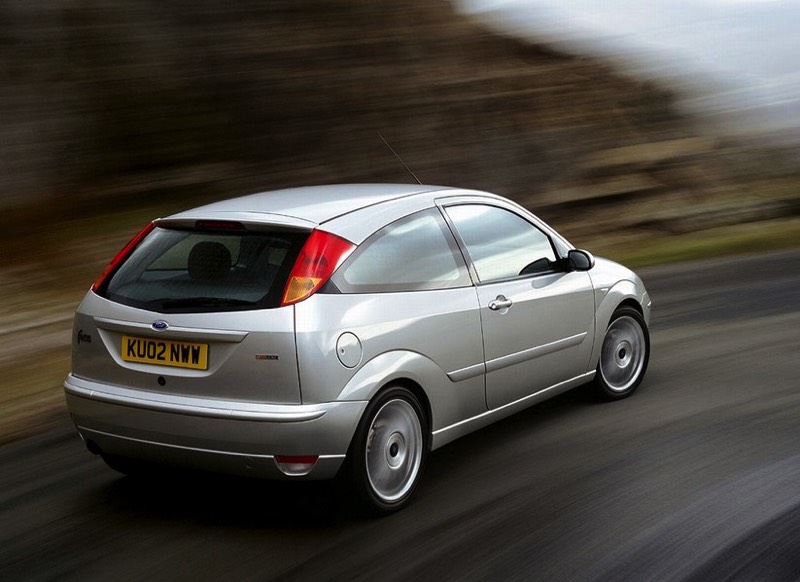

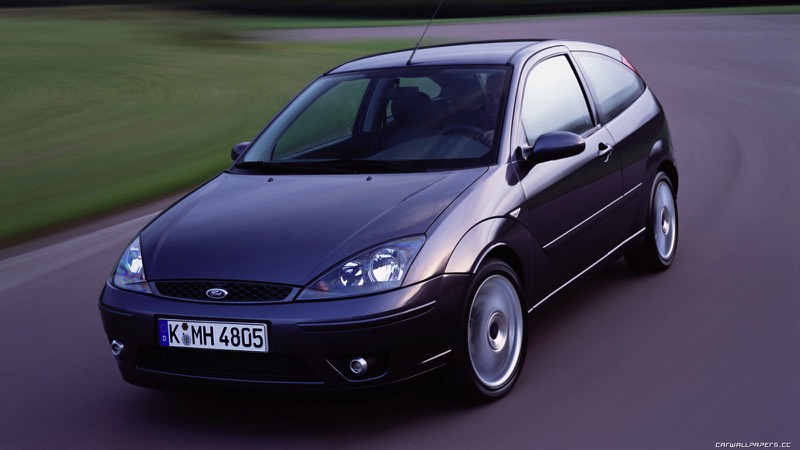

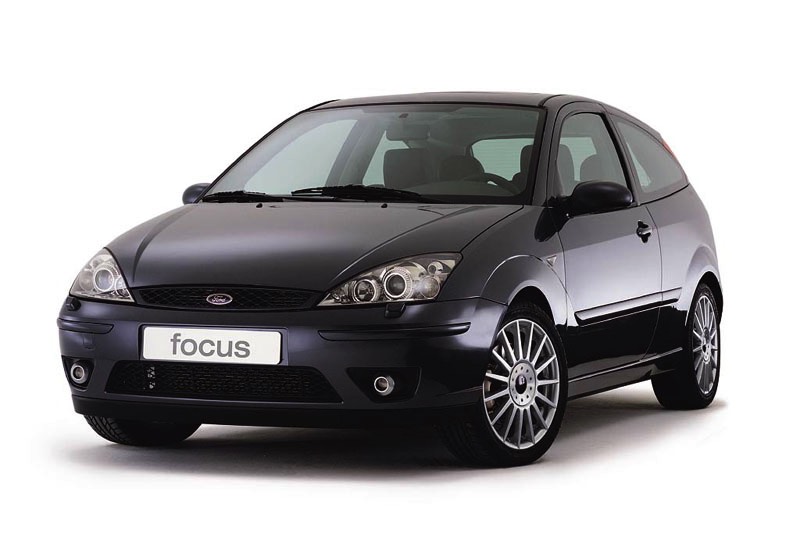

This ST has a hatchback or Wagon body style with a front mounted engine delivering its power to the front wheels.
Power is supplied by a double overhead camshaft, 2 litre naturally aspirated 4 cylinder motor, with 4 valves per cylinder that provides power and torque figures of 170 bhp (172 PS/127 kW) at 7000 rpm and 196 Nm (145 lb·ft/20 kgm) at 5500 rpm respectively. The engine powers the wheels through a 6 speed manual transmission. The Ford Focus ST170 weighs a quoted 1208 kg at the kerb.
2002 FORD FOCUS ST170 DATA
bodywork
body type hatchback or wagon
number of doors 3 or 5
designer
dimensions & weights mm
wheelbase 2615
track/tread (front) 1494
track/tread (rear) 1490
length 4152
width 1699
height
ground clearance
length:wheelbase ratio 1.59
kerb weight 1208 kg
weight distribution 62.50 % front
fuel tank capacity 55L
aerodynamics
drag coefficient 0.337
frontal area
cda
engine
engine type naturally aspirated petrol
engine manufacturer Ford
engine code
cylinders Straight 4
capacity 2 litre (1988 cc)
bore x stroke 84.8 x 88 mm
bore/stroke ratio 0.96
camshaft double overhead camshaft (DOHC)
valves per cylinder 4
valves in total 16
maximum power output (iso) 172 PS (170 bhp) (127 kW) at 7000 rpm
specific output (iso) 85.5 bhp/litre
maximum torque (iso) 196 Nm  (20 kgm) at 5500 rpm
specific torque (iso) 98.59 Nm/litre
engine construction cast iron block; aluminium alloy head
sump wet sumped
compression ratio 10.2:1
fuel system SMPFi
bmep (brake mean effective pressure) 1238.9 kPa (179.7 psi)
maximum rpm
engine coolant Water
unitary capacity 497 cc
aspiration Normal
compressor N/A
intercooler None
catalytic converter Y
Transmission
Transmission type Getrag MT285 6-speed, close-ratio manual
Clutch type Hydraulically operated with dual-mass flywheel
Clutch diameter 228mm
Weight (without oil) 45.5 kg
Oil fill 1.7 liters
performance
acceleration 0-80km/h
acceleration 0-100km/h 8.20 s
acceleration 0-160km/h
standing kilometer
maximum speed km/h 216
power-to-weight ratio 142.68 PS/ton  (104.94 kW/ton)
weight-to-power ratio 9.53 kg/kW
fuel consumption
fuel consumption (L/100Km) 12.4 / 7.2 / 9.1  urban / extra-urban / combined
fuel consumption (Km/L) 8.1 / 13.9 / 11.0   urban / extra-urban / combined
carbon dioxide emissions 218 g/km
carfolio calculated CO2 ? 211.12 g/km
chassis
engine position front
engine layout transverse
drive wheels front wheel drive
torque split N/A
steering rack & pinion PAS
turns lock-to-lock 2.890
turning circle
front suspension I.MS.CS.ARB.
rear suspension I.MultiLi.ARB.
wheel size front 7 x 17
wheel size rear 7 x 17
tyres front 215/45 R 17
tyres rear 215/45 R 17
brakes f/r VeDi/Di-S-ABS
front brake diameter 300 mm
rear brake diameter 280 mm
gearbox 6 speed manual
top gear ratio 1.09
final drive ratio 2.88
general
carfolio.com id 106007
production total
